Quest Mixed Reality Platform

The platform behind every Quest MR experience

The spatial capabilities we designed and built power every MR experience on the platform, from first-party titles to the third-party developer ecosystem.

Quest 3 shipped as a mixed-reality-first device, partly due to the influence of this body of work. When you first put on a Quest 3 or 3s, you see your space in passthrough instead of a holodeck - you're welcome!

MR requires a granular understanding of the world

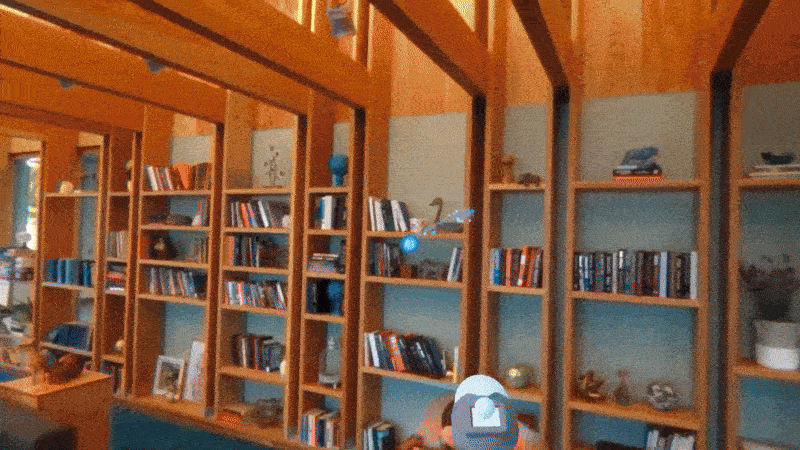

Quest's spatial understanding was a "room box" - a rectangular volume with bounding boxes for detected furniture. You couldn't roll a ball down a ramp, or even reliably put something on the seat of a chair.

Interactions that depended on spatial accuracy like bouncing a ball off a desk, placing an object on a shelf, scene overlays, etc. would fall apart because the approximations were too coarse to be useful.

We pushed for a different approach: generating a full geometric mesh of the room. A proper mesh enabled real collisions, laid groundwork for occlusion, supported spatial reasoning, and gave developers the fidelity they needed to build compelling content. We would push this concept even further with per-object meshes and semantic identifiers, to enable truly adaptive MR.

Prototyping as proof

To validate an updated version of the scene model against competing proposals, we built prototypes in tight collaboration with engineering, using them to inform engineering requirements, and get buy in on the validity of our approaches.

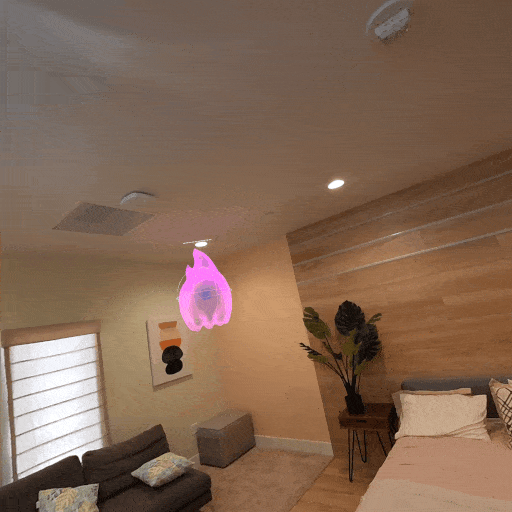

One of these prototypes in particular evolved into something much richer, a fully immersive showcase MR experience that highlighted all of our platform capabilities. This prototype would eventually serve as a vision piece to build conviction with leadership, a research instrument for studying quality and user value, and surfaced specific capabilities MR developers would need that didn't exist yet.

In a world of opinions, abstractions, and docs, prototypes win arguments.

The real world isn't static

A scene model is only useful if it's accurate. Users rearrange furniture. They open doors. They move to different rooms. When we fall out of date, collisions break, occlusion misaligns, the experience degrades. Worse, users blame the app, not the stale scan. We iterated on this problem relentlessly to address it in a twofold approach:

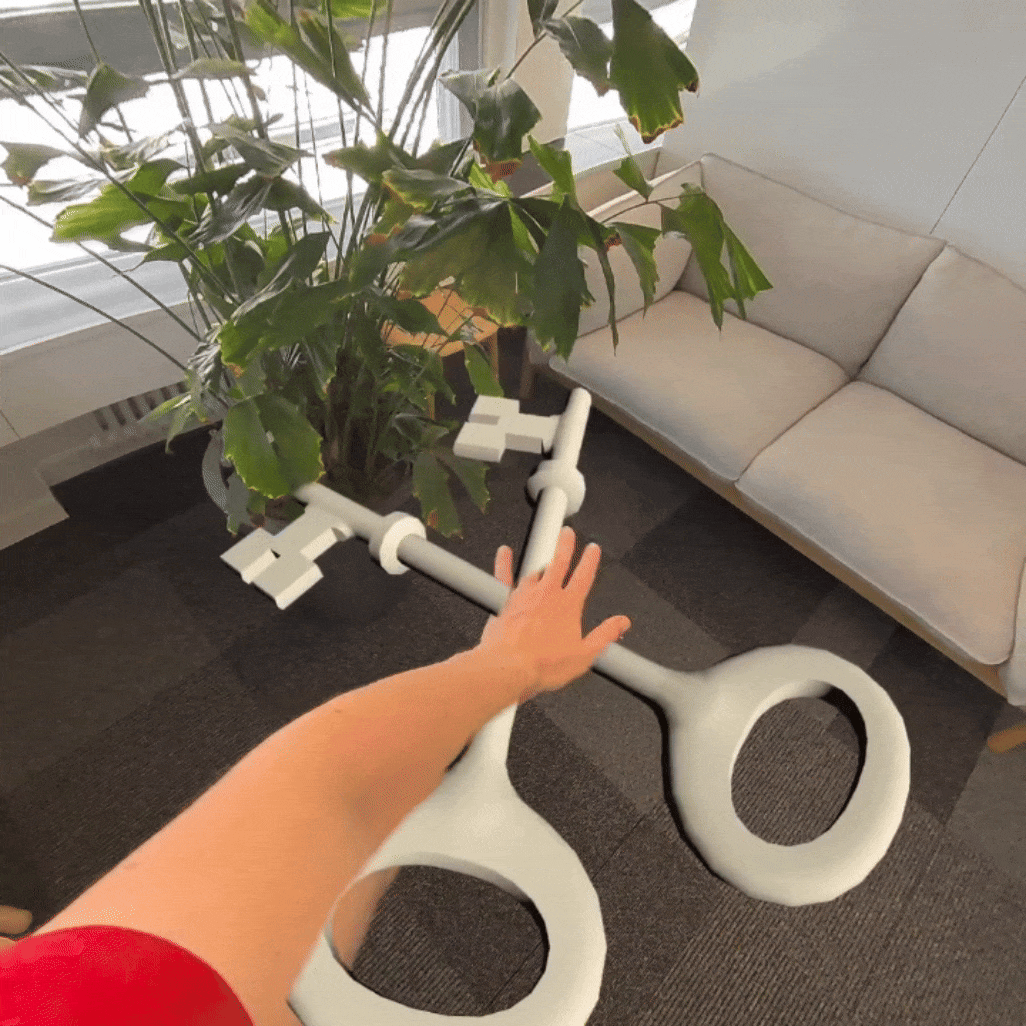

1. Realtime technologies like Instant Placement and depth occlusion.

2. A system for updating our previously static scene model without requiring any user intervention. This system is designed to passively and securely record spatial data while the device is in use, then processes scene updates during idle periods. Every time an MR experience begins, it starts with a fresh scene model ready to go.

Setting up a scene

Assisted Scene Capture is the room scanning flow every Quest MR user encounters when setting up their space. I sat at the intersection of the platform team and the Horizon OS design team. The platform team needed specific user behaviors to produce high-quality spatial data, and the OS team needed a flow that felt effortless and didn't block users from getting into their first experience. My role was to translate and define requirements for both sides, and provide proof of experiences through prototyping to drive alignment.

The interaction conventions we established here became the foundation that allows every Quest user to set up their space for MR and frankly, to have fun doing it. The same conventions later informed the scanning flow for Hyperscape.

Does every MR app actually need a full scene?

Room scanning, even at its best, introduces friction. Users face a multi-minute setup before their first MR experience. Developers face a complicated new data structure for spaces they've never seen. Both contributed to measurable drop-off.

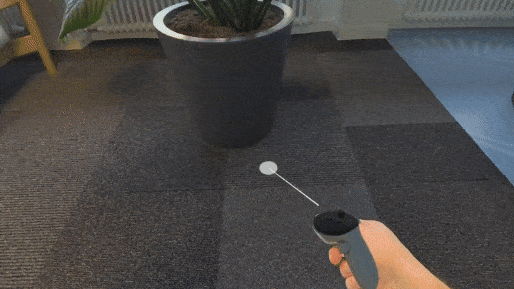

The hypothesis was simple: most MR apps don't need a full room scan. After conducting an analysis of both the existing MR and mobile AR market, we found that the majority of MR content experiences just need to place objects on surfaces. Not spatial reasoning. No navigation meshes. Not full room reconstruction.

We saw an opportunity to give developers surface-level spatial data without requiring a scan at all.

Instant Placement

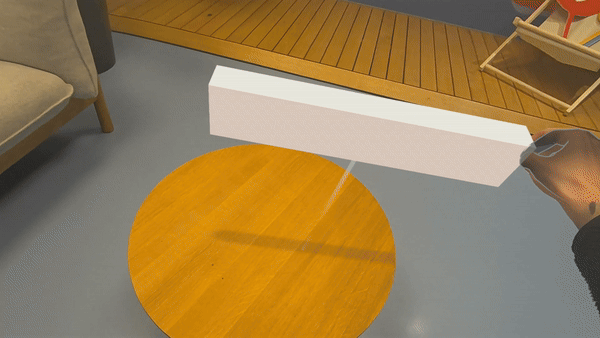

We prototyped and validated an alternative: reading the device's depth buffer in real time to resolve a 3D hit point and surface normal from a controller or hand raycast, no scene model required, allowing users to enter the majority of MR experiences immediately.

We designed the API to map directly to how game engines already handle raycasting - a single call returns hit coordinates and a surface normal. If you've used Unity or Unreal, you already know how to use it.

The core technical challenge was depth noise. Raw depth data is noisy, so extensive prototyping went into smoothing strategies while developing experiences; algorithmic filtering, camera-input conditioning, and tunable developer parameters. Techniques we developed during this process, like multipoint normal sampling with outlier rejection, ended up baked directly into the API.

Baking it into the OS

When the Horizon OS team set out to make the operating system spatially aware, allowing users to pin windows to physical space, Instant Placement provided the core technology foundation. A room scan on device boot was never going to fly, making a real time depth-based approach with no scan essential.

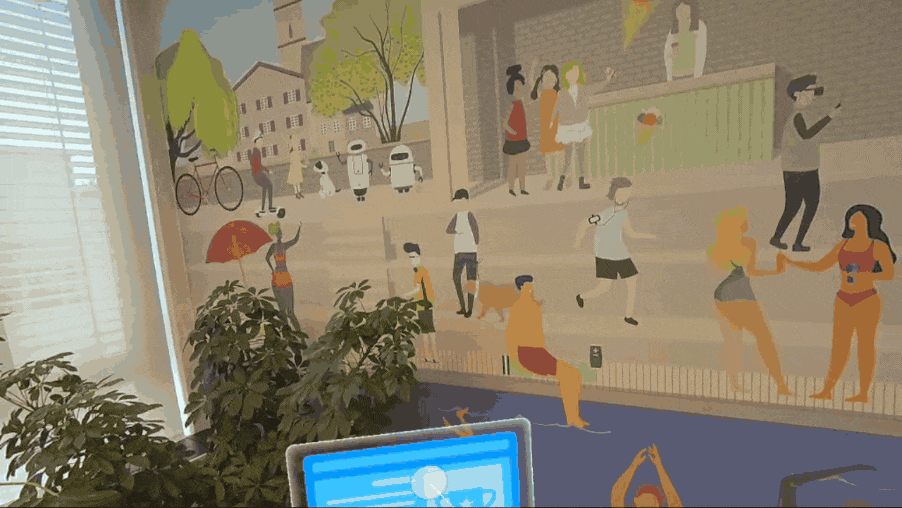

Getting this right meant aligning two teams with different perspectives on what 'good enough' spatial accuracy looked like. We led the initial prototyping that established the patterns for spatial panel placement - how panels attach and detach, the behavioral rules, the required system states - then worked with the OS team as they carried these through to their final design implementation.

Designing by building

Traditional design tooling doesn't work for spatial computing. You can't evaluate the feel of a placement interaction in Figma. You can't judge mesh jitter from a mockup. You can't test whether occlusion is believable at a given edge feather without experiencing it in the headset. Mockups illustrate intent, but they can't surface the problems that matter in practice like latency, tracking accuracy, consistency, hand feel.

All of our design work is built and tested, working, on device. Prototypes served as the primary artifact: proving vision to secure investment, generating research stimuli for UX studies, stress-testing developer ergonomics before APIs shipped. Building the prototypes ourselves meant hitting the same walls developers would hit - and the workarounds we developed often informed what ended up in the final API.

The foundation underneath

Quest is how most people experience mixed reality today. The spatial capabilities we built, from the scene model and spatial anchors to Instant Placement and the scanning flow, are the foundation underneath every MR experience on the platform. When developers build for mixed reality, they're building on this work.
